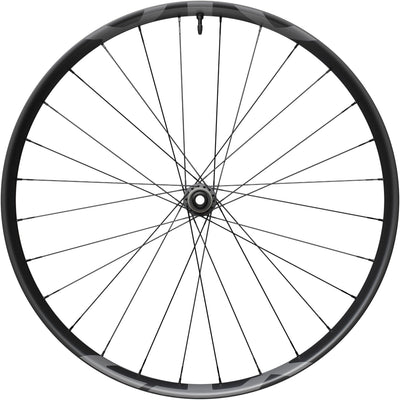

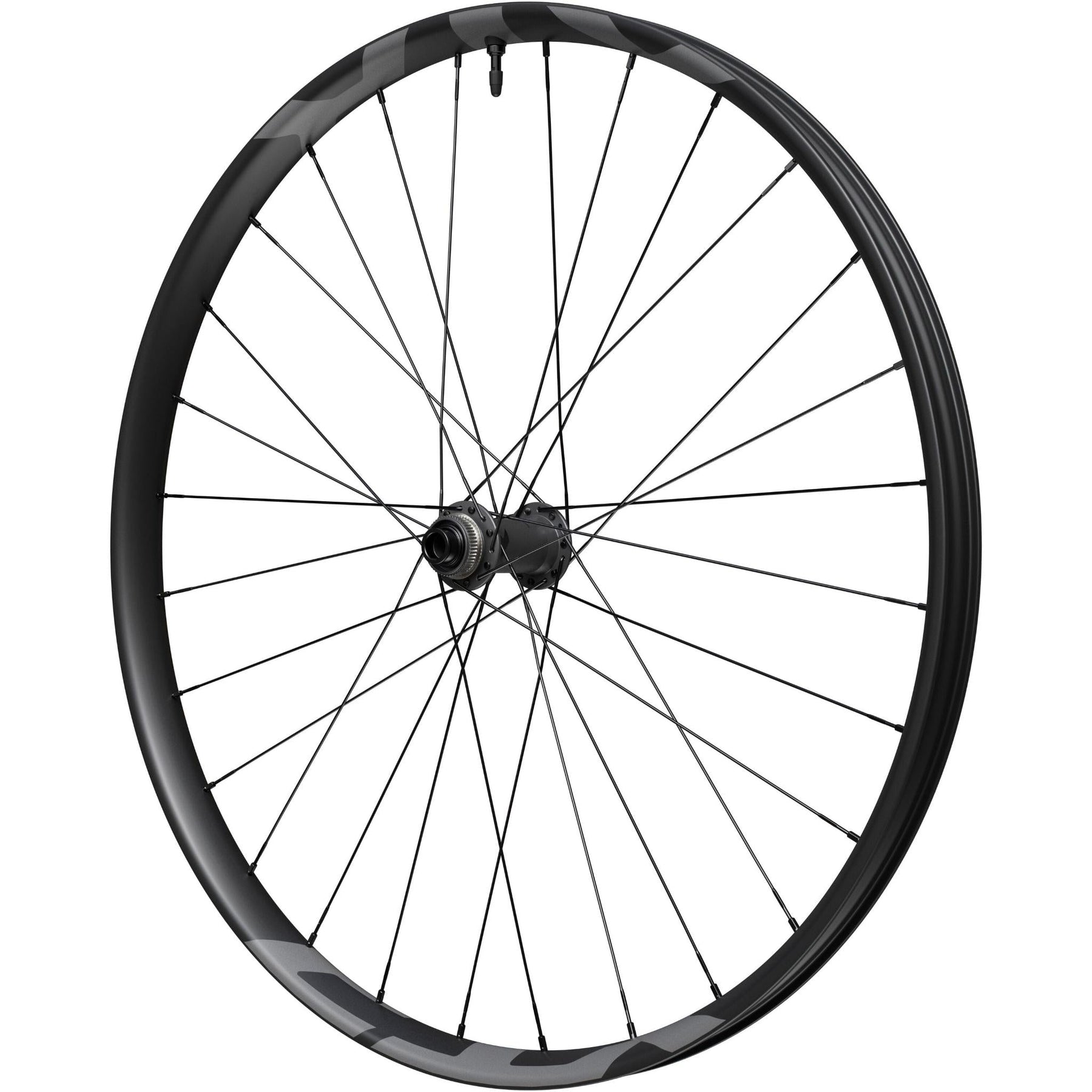

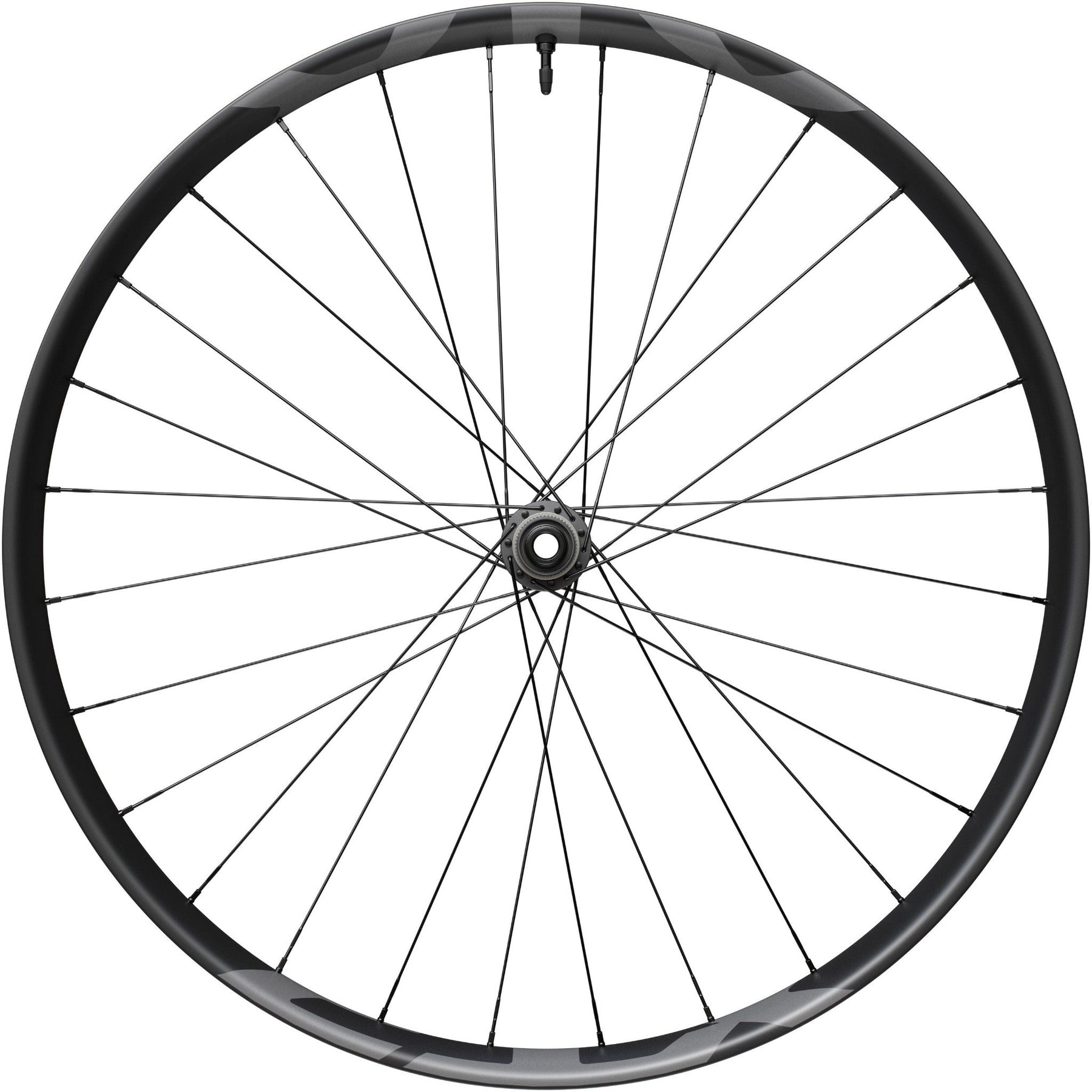

Built with the Enduro World Series racing and serviceability in mind, the Shimano XTR M9220 29er Front Wheel is Shimano’s beefiest full-carbon wheel offering yet.

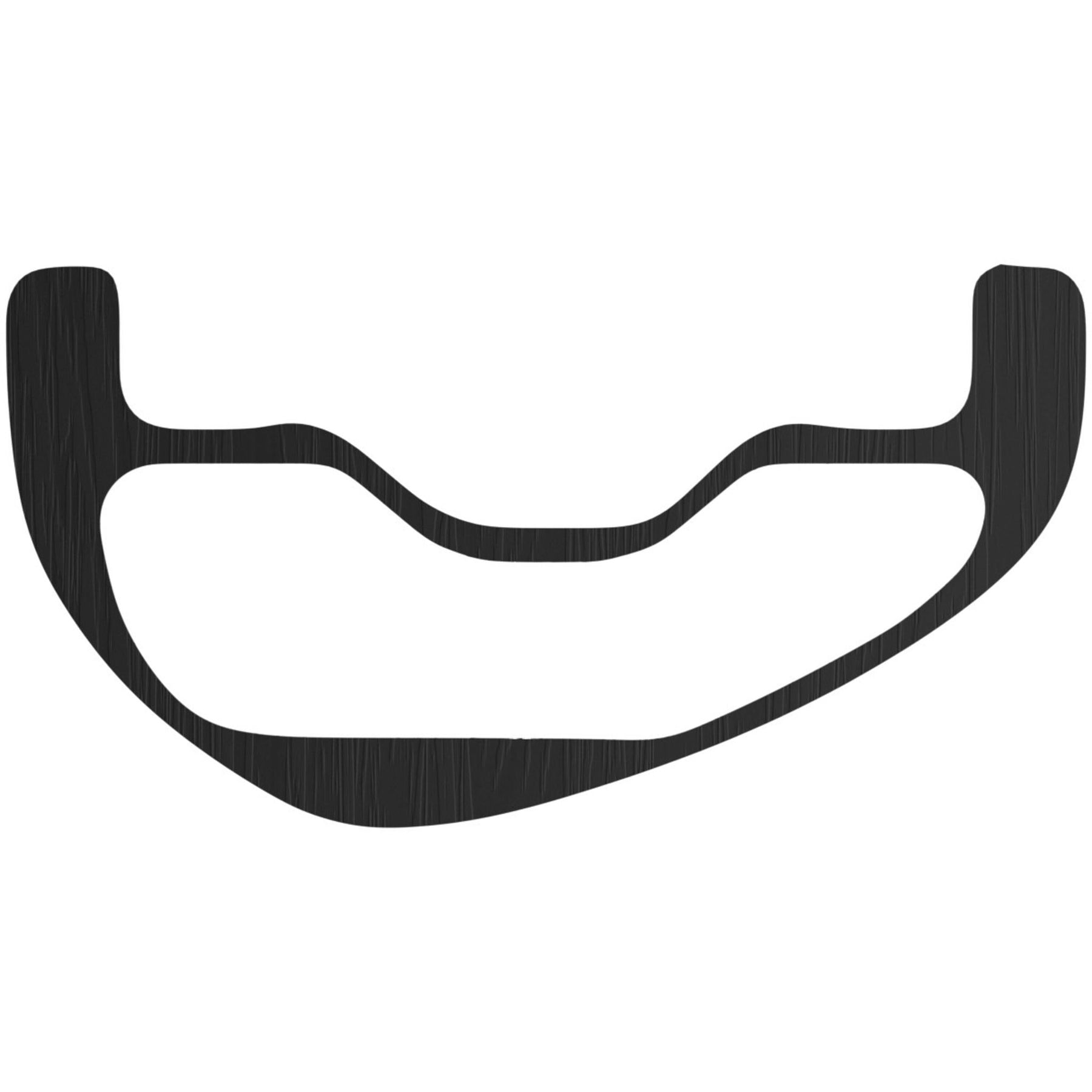

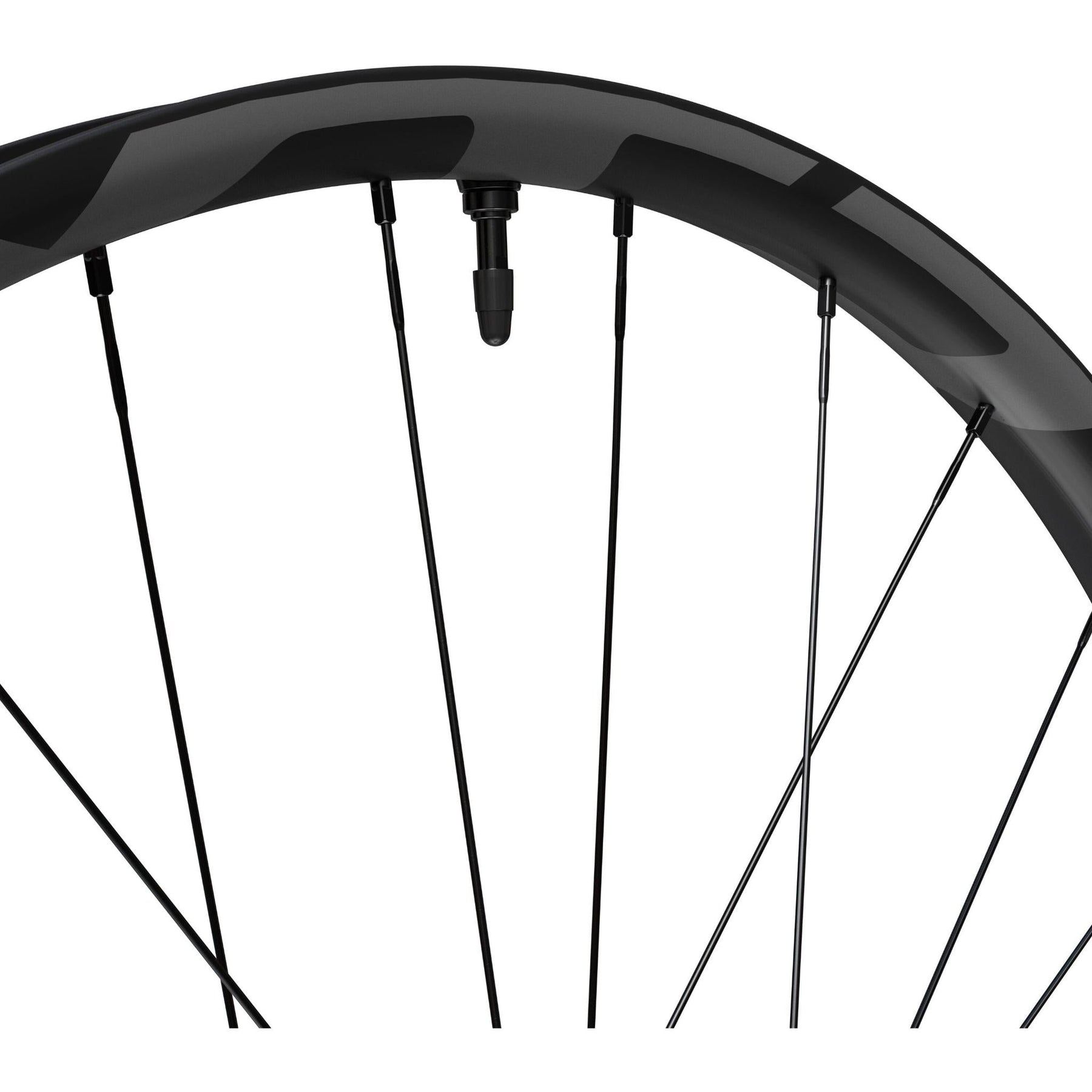

Equipped with a hookless 30 mm carbon rim, all-new XTR hubs and traditional 28H stainless steel J-Bend spokes, the WH-M9220 is built to survive and easy to repair if things go wrong.
Features:
Conventional Drilling/Boost Spacing: Available in conventional 29-inch, 110x15 front hub boost spacing and traditional 28H drilling option.

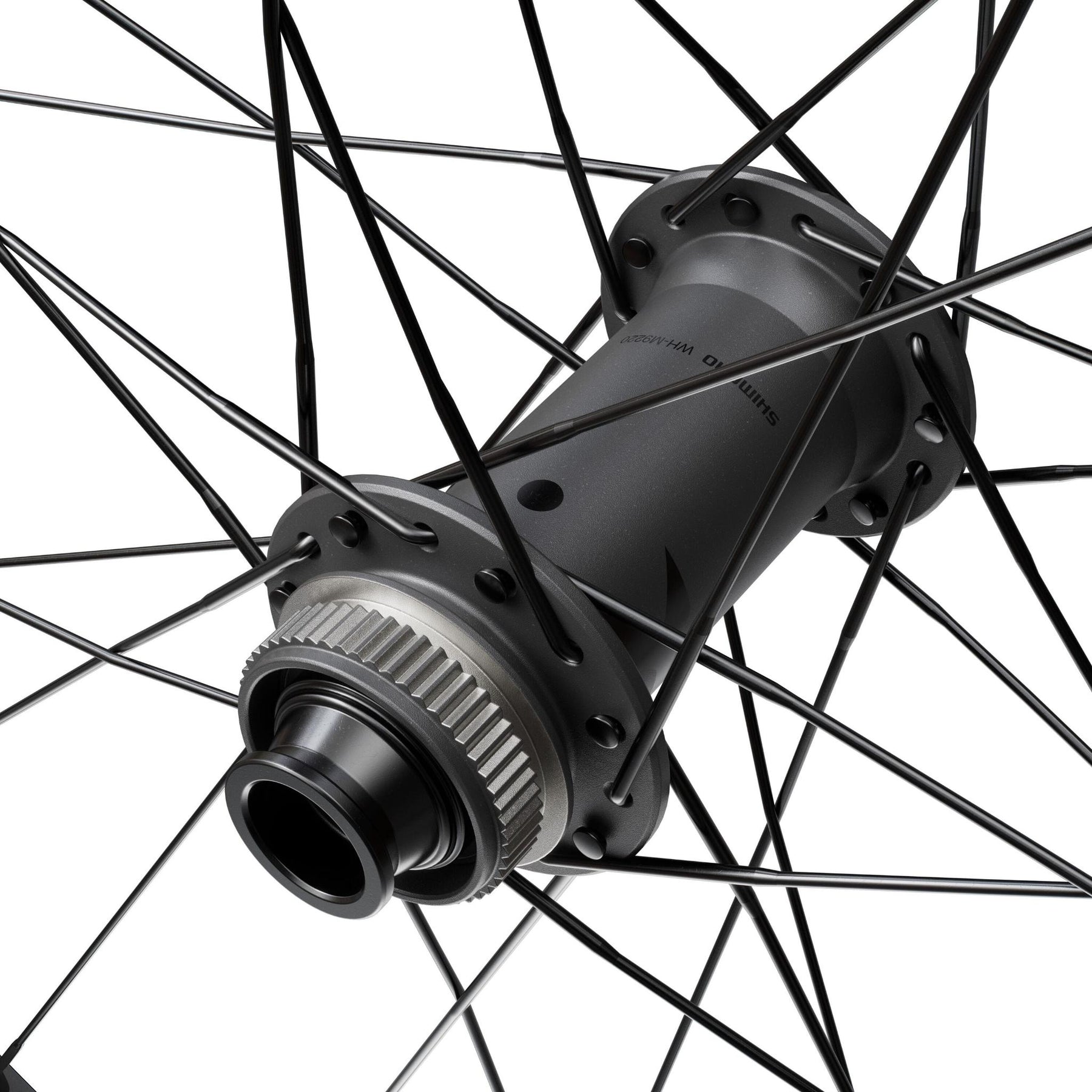

Cartridge Bearings: XTR hubs are now available with easily serviceable stainless steel cartridge bearings.
Rotation: Cartridge bearings, optimized seal designs and preload adjust keep the hub consistently rolling smoothly.
Specifications:
Series XTR
Brake type CENTER LOCK disc brake
O.L.D. (mm) 110
Wheel size 622 x 30TSS (29 inch)
Tubeless ready
Recommended Tyre Size 2.30" - 2.60"
Height (mm) 19.7
Internal width (mm) 30
External width (mm) 38
OFFSET RIM
Spokes 28H J-bend
Diameter (mm) 2.0-1.6
Hub Seal Labyrinth+Contact
