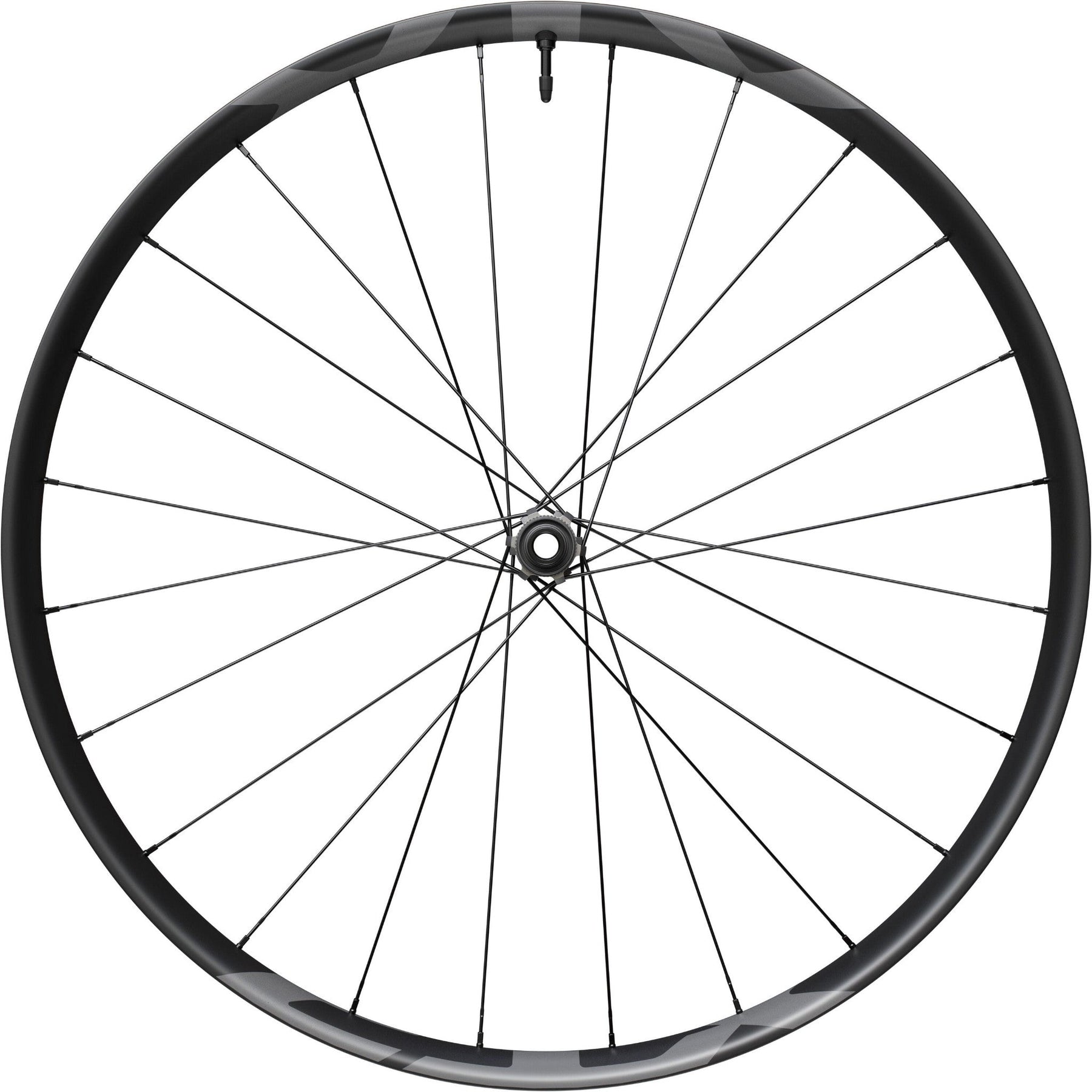

The Shimano XTR M9200 29er Front Wheel is a featherweight wheel designed for the XC racer (or racer at heart), built around Shimano’s lightest-ever carbon tubeless 29.6 mm hooked rim, laced with titanium straight spokes, and spinning on more reliable, higher-performing XTR hubs.
Along with being the lightest production ever produced in the XTR family, WH-M9200 wheels also feature Center-lock brake mounts to complete the full XC package.
Features:

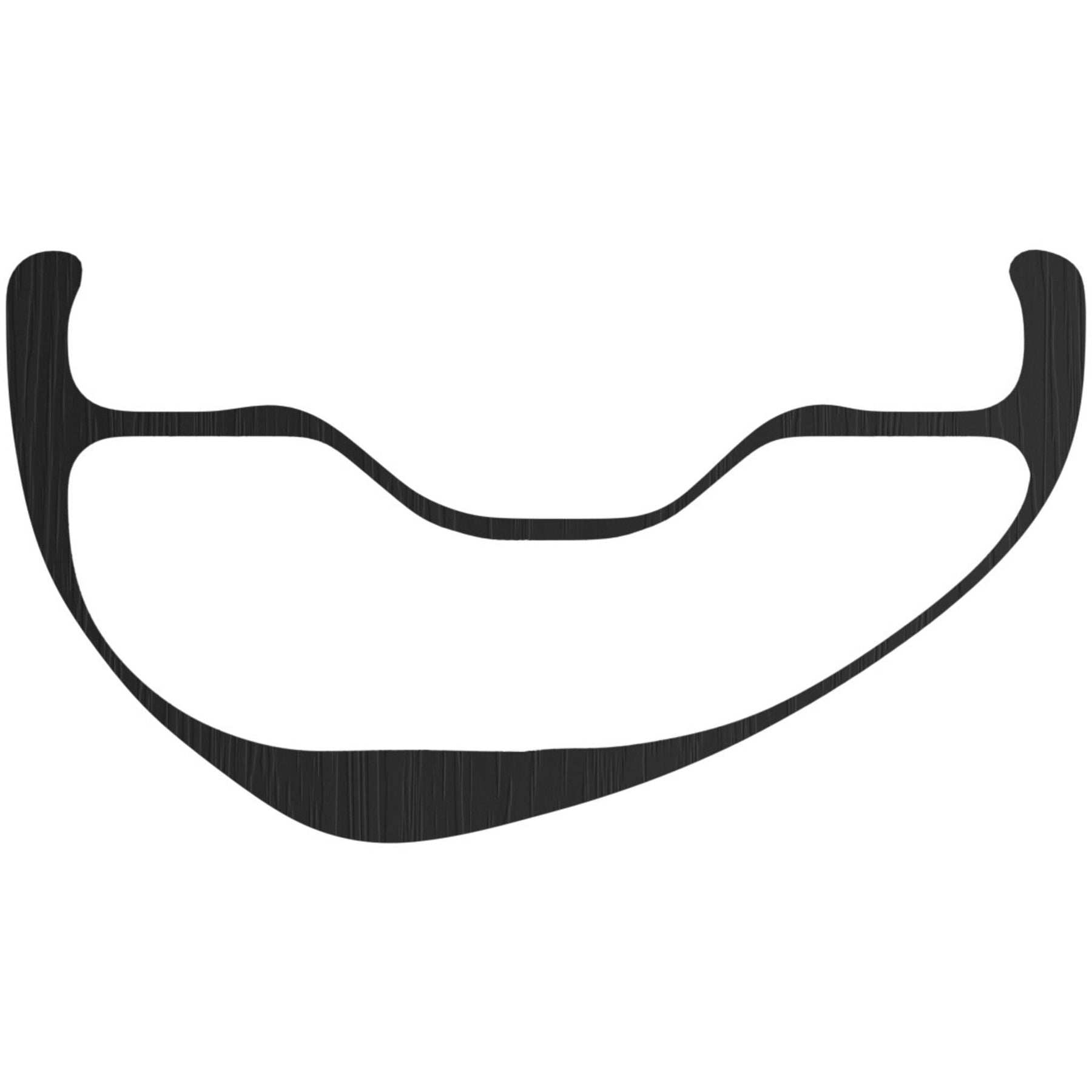

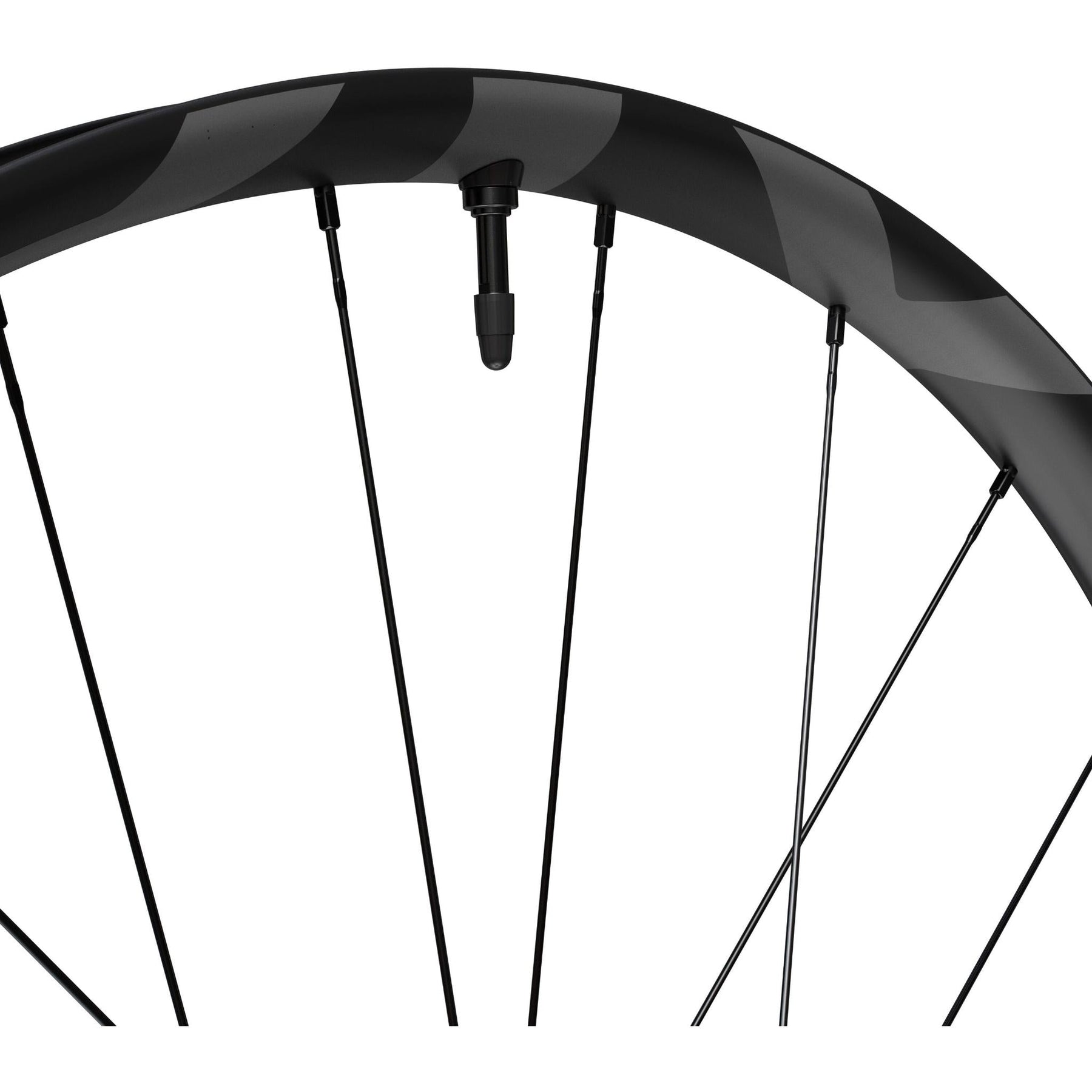

Carbon Rim: 29.6 mm full-carbon rim keeps the wheel light but robust enough for high-level XC racing.
Titanium Spokes/24H Straight-laced: 29-inch rims, 110x15 front hub boost spacing and titanium spokes balance weight and strength.

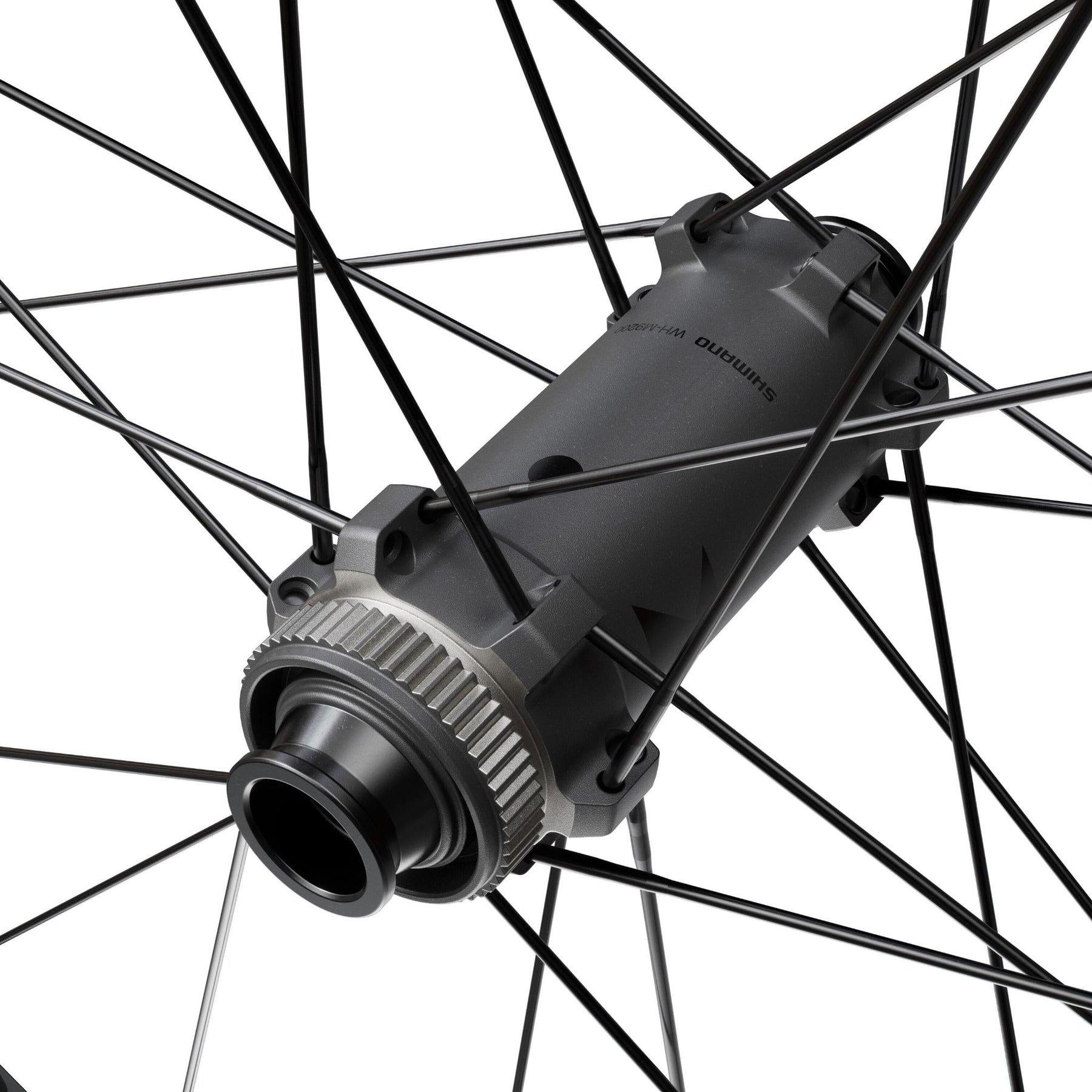

Cartridge Bearings: XTR hubs are now available with easily serviceable cartridge bearings.
Rotation: Cartridge bearings, optimized seal designs and preload adjust keep the hub consistently rolling smoothly.
Specifications:
Series XTR
Model name WH-M9200-TL
Brake type CENTER LOCK disc brake
O.L.D. (mm) 110
Wheel size 622 x 29.6TC (29 inch)
Tubeless ready
Recommended size 29 x 2.20 - 2.60
Height (mm) 19.2
Internal width (mm) 29.6
External width (mm) 35
OFFSET RIM
Spokes 24 Straight pull
Diameter (mm) 2.2-2.0-1.7-2.0
Seal - Labyrinth+Contact
