Reverse have created a full range of premium wheels to cater for every riding style and wheel size, from DH to XC from 26” to 29”.

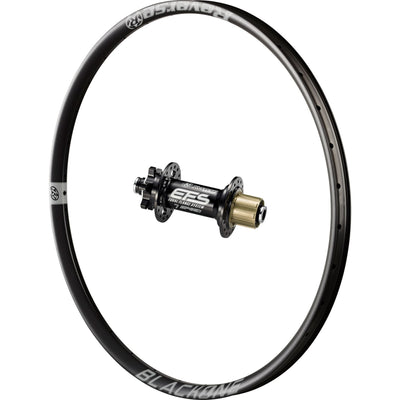

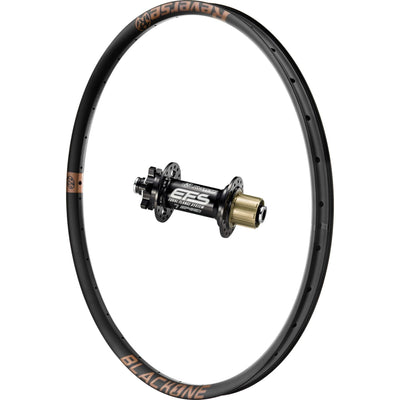

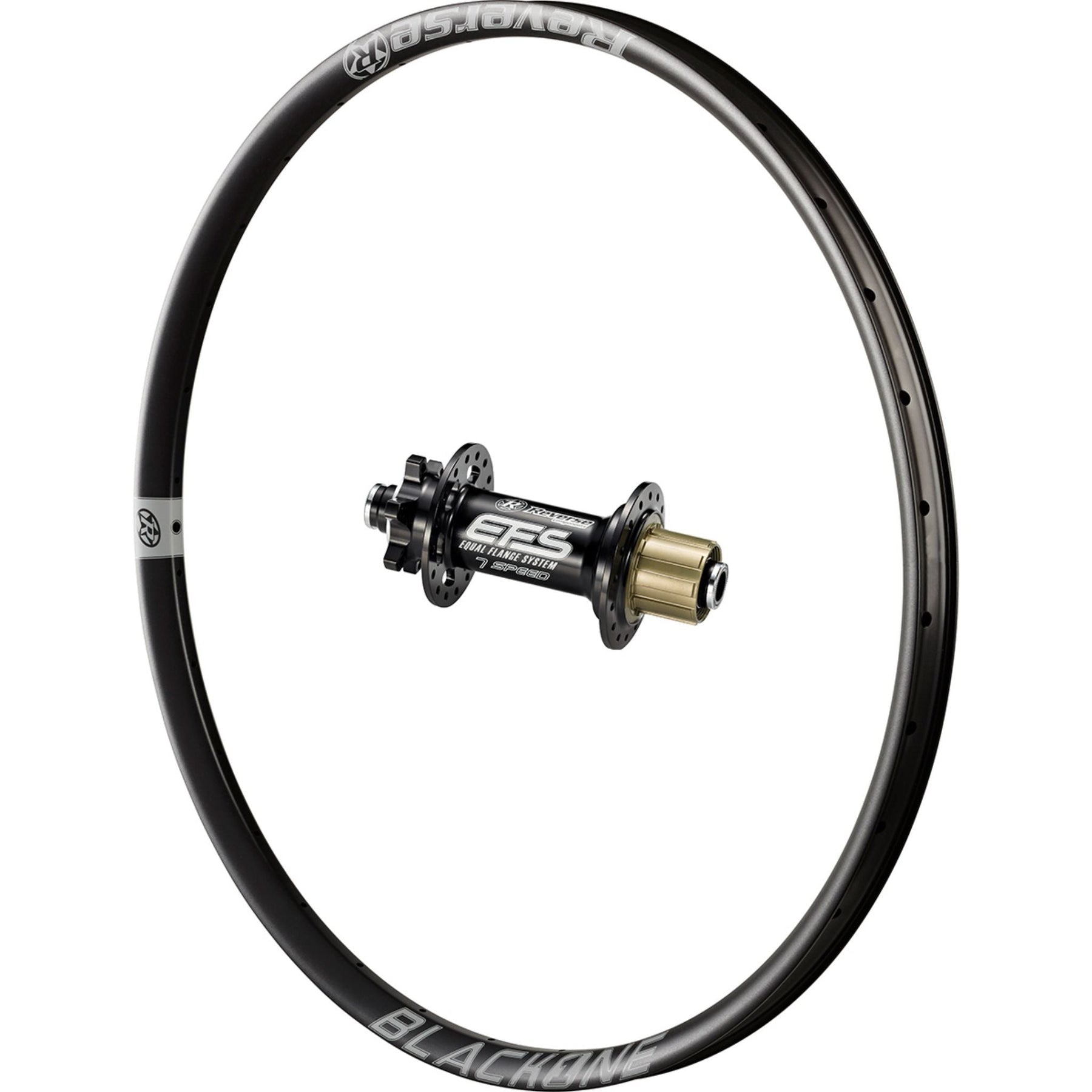

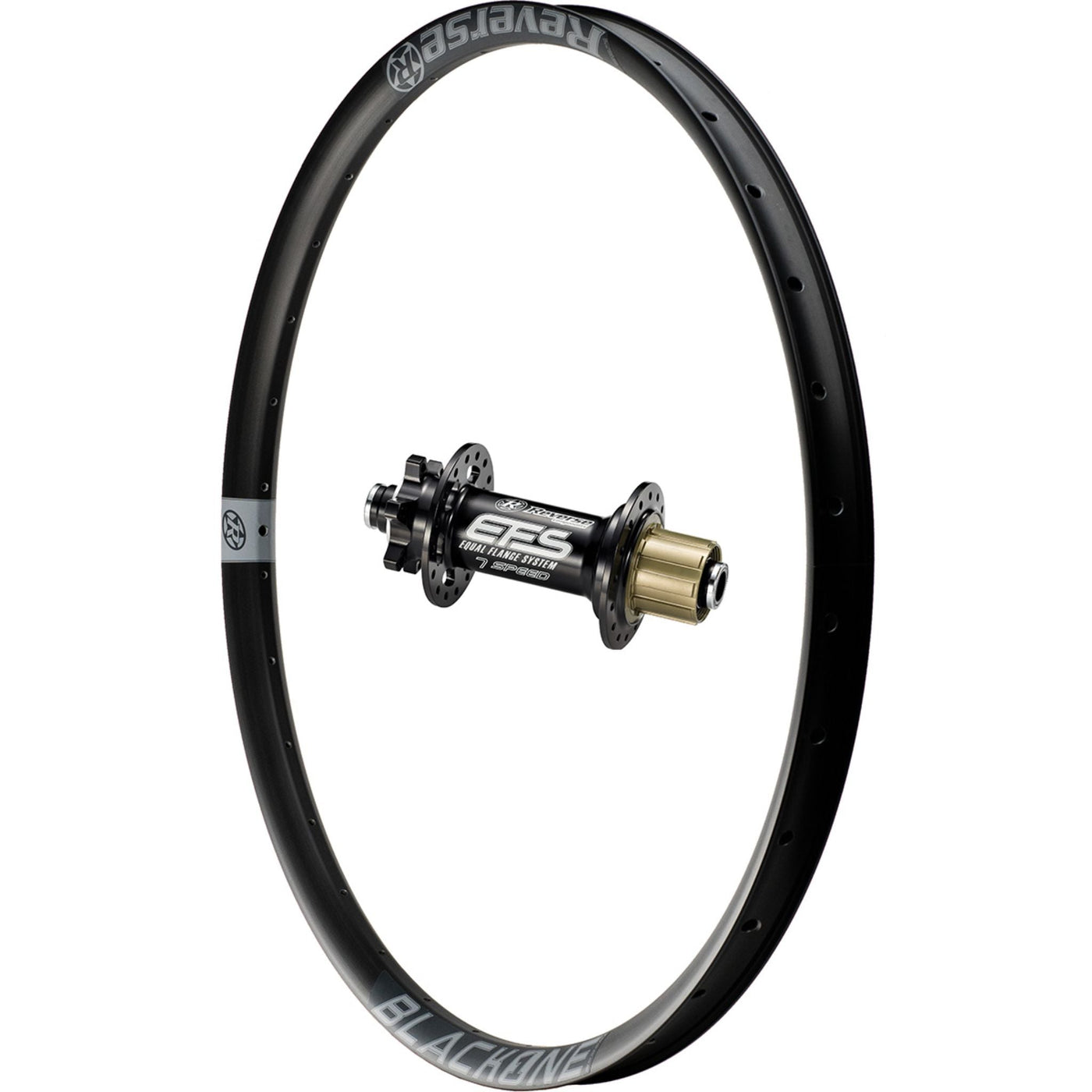

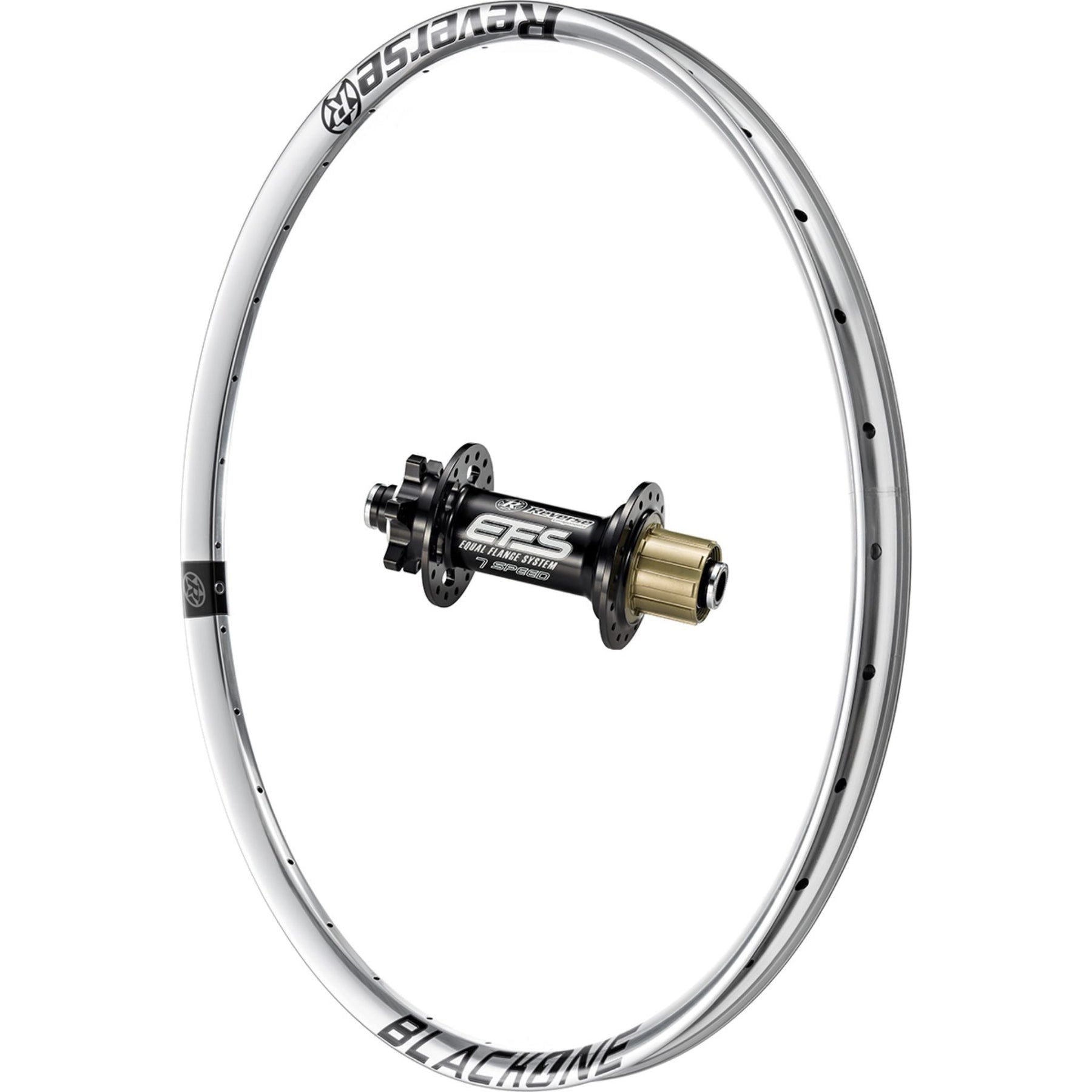

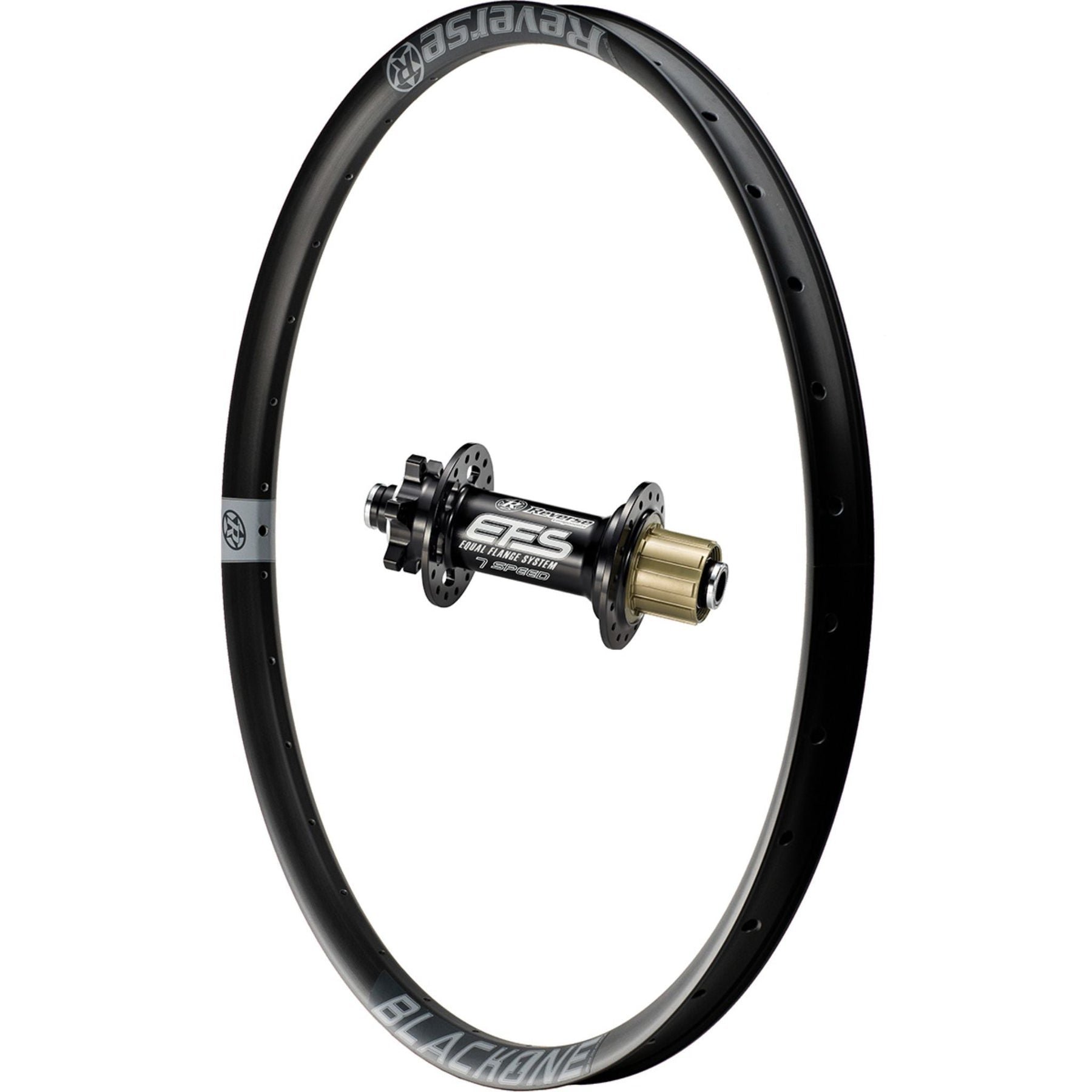

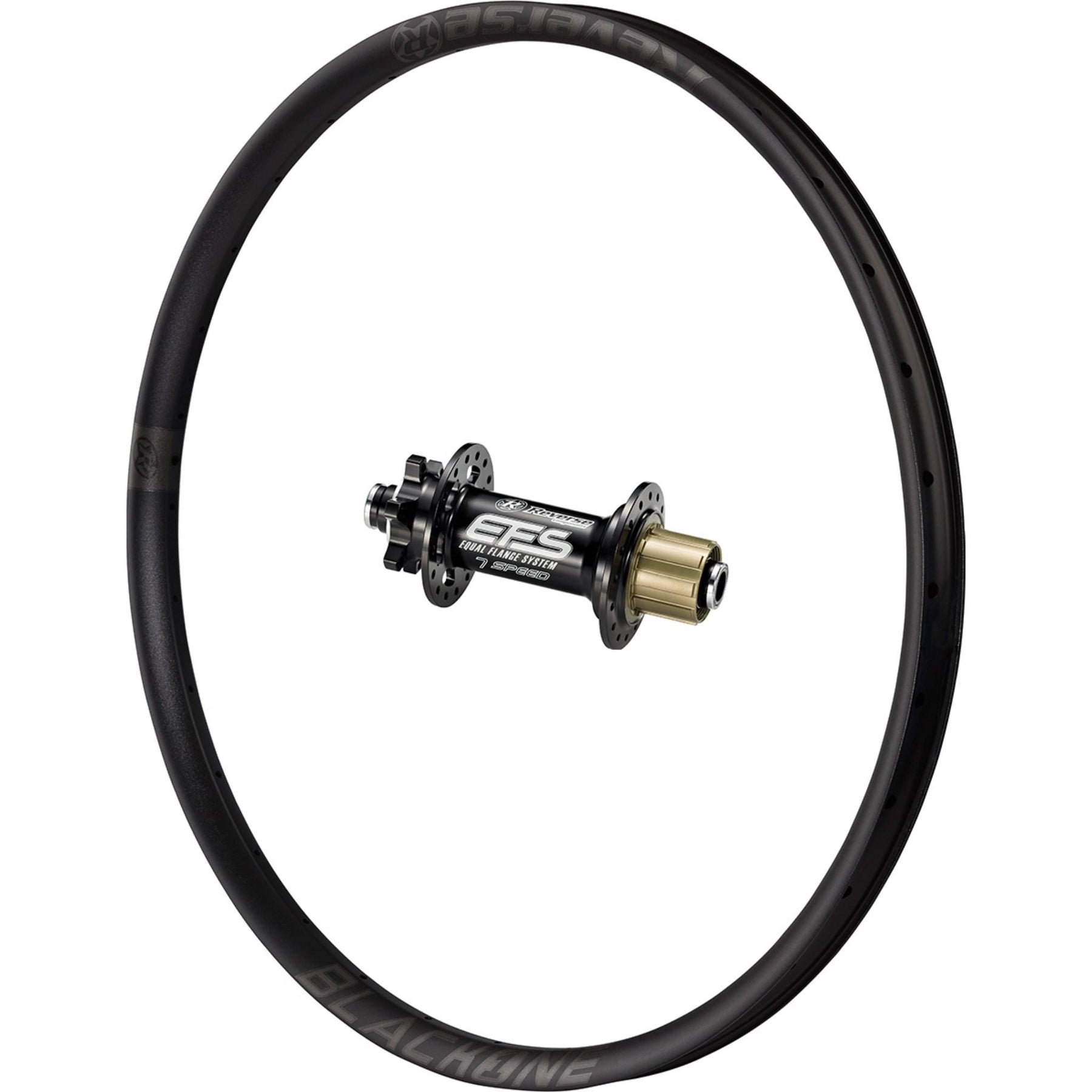

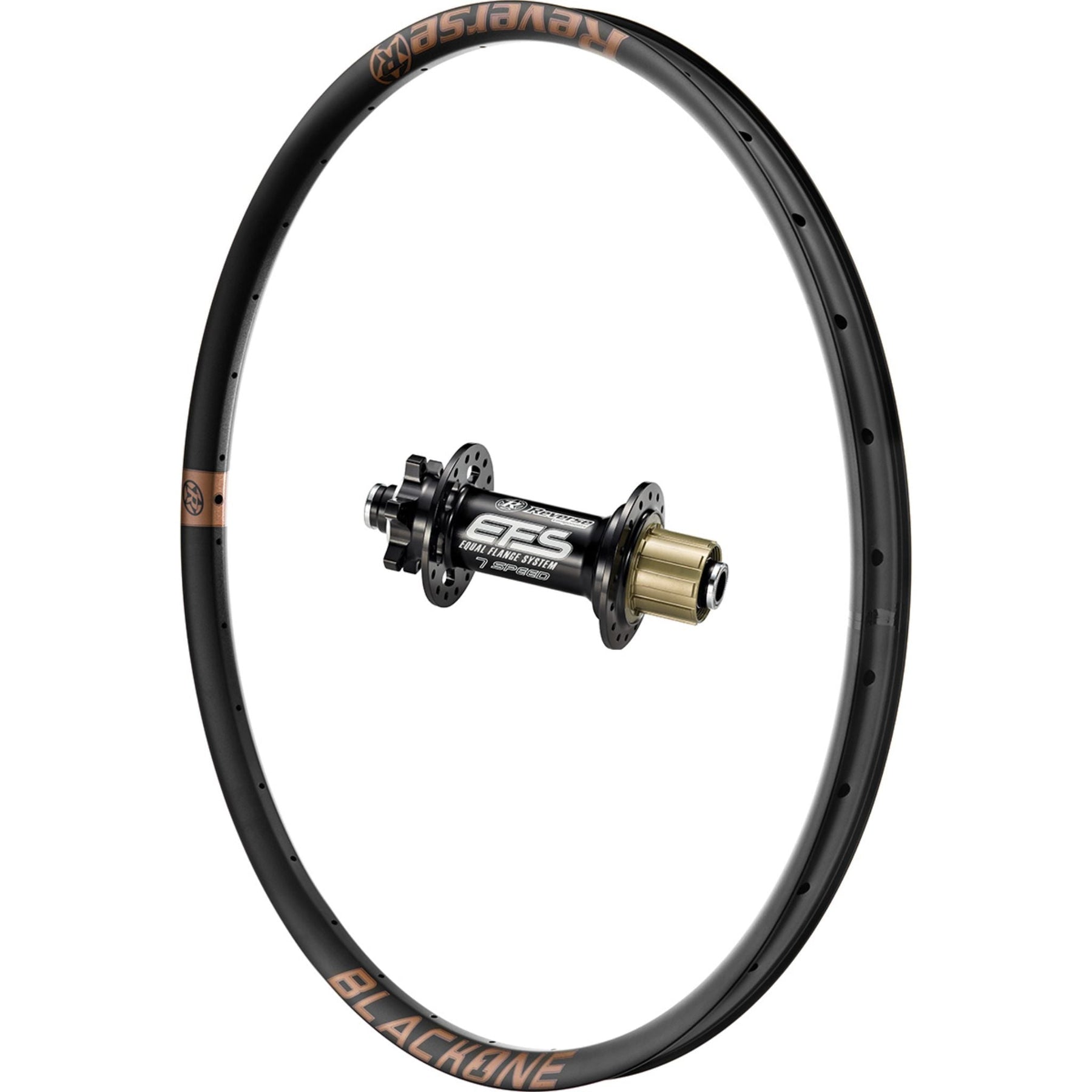

The Reverse Components Black ONE DH Rear Wheel is perfect for downhill and freeride use, with a wider diameter for better tyre profiles and tubeless seating, increasing strength and reducing flex.
Using only high quality SAPIM spokes and Sapim alloy nipples to ensure that the wheel will last run after run.
Rim 26":
Tubeless ready (can be converted to tubeless by the installation of our tubeless kit)
Rim joint: pinned and sealed (sealed rim joint for perfect tubeless performance)
Size: 26"
Holes: 32 (without eyelets)
ERD: 530 mm
Outer width: 35 mm
Inner width: 30 mm
Height: 21.8 mm
Weight: 470 g (+/- 5% weight tolerance)
Valve hole: Presta / SV
Rim 27.5":
Tubeless ready (can be converted to tubeless by the installation of our tubeless kit)
Rim joint: pinned and sealed (sealed rim joint for perfect tubeless performance)
Size: 27.5"
Holes: 32 (without eyelets)
ERD: 554.3 mm
Outer width: 35 mm
Inner width: 30 mm
Height: 21.8 mm
Weight: 510 g (+/- 5% weight tolerance)
Valve hole: Presta / SV
Rim 29":
Tubeless ready (can be converted to tubeless by the installation of our tubeless kit)
Rim joint: pinned and sealed (sealed rim joint for perfect tubeless performance)
Size: 29"
Holes: 32 (without eyelets)
ERD: 592.3 mm
Outer width: 35 mm
Inner width: 30 mm
Height: 21.8 mm
Weight: 549 g (+/- 5% weight tolerance)
Valve hole: Presta / SV
Hub Shimano DH7:
150x12mm & 150x12mm
Holes: 32
120 points of engagement
Weight: 305 g (+/- 5% weight tolerance)
Only 7-speed compatible
EFS = Equal Flange System
Symmetrical flange distances for symmetrical spoke angles
Hub Shimano HG:
150x12mm & 150x12mm
Holes: 32
120 points of engagement
Weight: 305 g (+/- 5% weight tolerance)
EFS = Equal Flange System
Symmetrical flange distances for symmetrical spoke angles
Spokes:
Sapim Leader (Black)
Nipple:
Sapim Polyax Brass 14mm (Black)
Material:
Rim and hub Aluminum
Spokes: stainless steel
Nipple: Brass
