Pivot Shuttle AM 2026

The Pivot Shuttle AM is an advanced all-mountain electric mountain bike that seamlessly blends the latest technologies with Pivot's race honed design. Crafted for riders seeking versatility across diverse terrains, this e-MTB stands out in the crowded market with its exceptional features and Pivot Cycles famous attention to detail.

At the heart of the Shuttle AM lies the Bosch Gen 5 Performance Line CX drive system. The CX motor in Ride builds or the CX-R motor in Pro and Team builds. Both motors offer a massive 100nm of torque, delivering a dynamic and responsive riding experience. All build come with the large capacity 800wh battery, more than enough for a days shredding.

The Shuttle AM boasts a full carbon frame on Pro and Team builds (the Ride build has a carbon front triangle with an alloy rear triangle) utilizing Pivot's renowned DW-Link suspension system, providing 148mm of rear travel paired with a 160mm fork. This combination ensures a plush ride that adeptly absorbs both minor bumps and significant impacts, maintaining traction and control across varied terrains. The bike's geometry, featuring a 64.1° head angle and a 76.4° seat tube angle, strikes a balance between stability on descents and efficiency during climbs.

Key Features -

• Ultralight Hollow Core Carbon Frame
• Powerful, Smooth Gen 5 Bosch Performance Line CX Motor on Ride build, Gen 5 CX-Race Motor on Pro and Team Builds. 750W power, 100nm torque
• Long-range 800Wh Battery

• Bosch 250wh PowerMore Range Extender Compatible
• Integrated Power and Mode Display
• Wheel Mounted Speed Sensor
• Wireless Bosch Remote

• Flip-Chip Upper Link Mount
• 29" as standard (Mixed Wheel Compatible)
• Pivot Dock Tool System Compatible
• Water Bottle Clearance on All Sizes

• Injection Molded Rubberized Frame Protection
• Full Internal Routing with Pivot Cable Port System

SIZING -

• S: 5'2 - 5'7
• M: 5'7 - 5'11
• L: 5'10 - 6'2
• XL: 6'1+

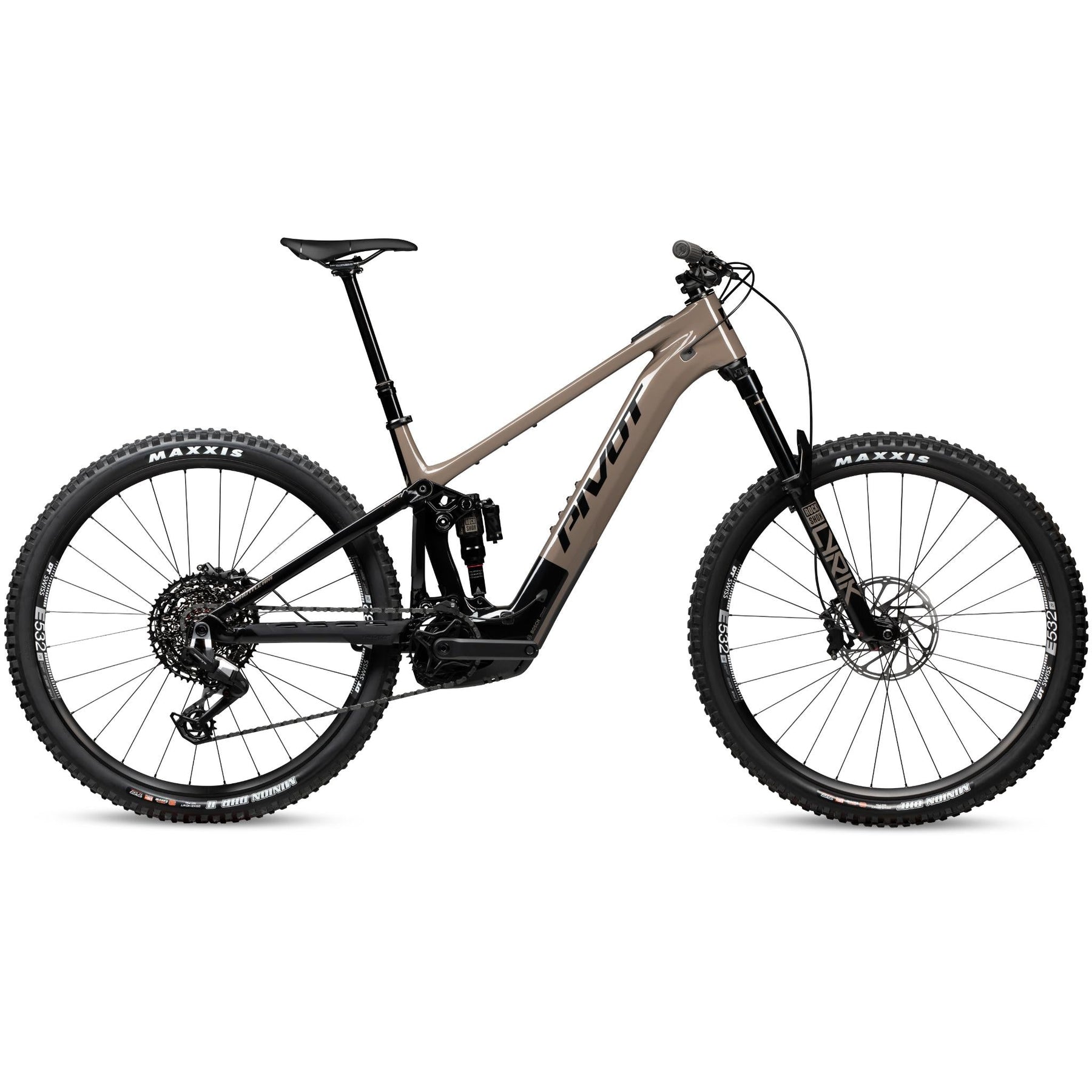

Specifications::Ride Eagle 70/90

• Discipline: All-Mountain/Enduro

• Material: Carbon

• Front Travel: 160mm

• Rear Travel: 150mm

• Wheel Size: 29

• Warranty: Lifetime (frame)

Rear Shock - RockShox Super Deluxe Select
Fork - RockShox Lyrik Select+ 29”, 44mm offset, 160mm
Headset - Pivot Precision Sealed Cartridge
Rear Derailleur - Sram Eagle 90 Mechanical Transmission 12-Speed
Shifter - Sram Eagle 90 Mechanical Transmission 12-Speed
Cassette - Sram XS-1270 Eagle Transmission 10-52t
Chain - Sram Eagle 70 Flattop 12-Speed
Crank Set - FSA CK-220/IS Armset 34t - 160mm
Brakes - Sram DB8 Stealth 4-piston
Rotors - Sram Centerline Centerlock - 200m
Drive unit - Bosch Gen 5 Performance CX
Battery - BOSCH Powertube 800wh
Handlebar - Phoenix Race Low Rise Aluminium - 780mm (SM-MD), 800mm (LG-XL)
Grips - Phoenix Factory Lock-On
Stem - Phoenix Team Enduro/Trail - 45mm
Seatpost - JD YSP23GLS, 130-150mm (SM), 150-170mm (MD), 180-200mm (LG-XL
Saddle - Pivot Ride E-Bike
Wheels - DT Swiss E532, 30mm - 29” | F - 15x110 / R - 12x157
Tyres - Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA

Specifications::Pro Eagle X0

• Discipline: All-Mountain/Enduro

• Material: Carbon

• Front Travel: 160mm

• Rear Travel: 150mm

• Wheel Size: 29

• Warranty: Lifetime (frame)

Rear Shock - RockShox Super Deluxe Ultimate
Fork - RockShox Zeb Ultimate 29”, 44mm offset, 160mm
Headset - Pivot Precision Sealed Cartridge
Rear Derailleur - Sram X0 Eagle Transmission 12-Speed
Shifter - Sram AXS Pod Controller
Cassette - Sram X0 1295 Eagle Transmission 10-52t
Chain - Sram X0 Eagle Flattop 12-Speed
Crank Set - Praxis Alloy eCranks E-MTB 34t - 160mm
Brakes - Sram Maven Silver 4-piston
Rotors - Sram HS2 Centerlock - 200mm
Drive unit - Bosch Gen 5 Performance CX-R
Battery - BOSCH Powertube 800wh
Handlebar - Phoenix Race Low Rise Carbon
Grips - Phoenix Factory Lock-On
Stem - Phoenix Team Enduro/Trail - 45mm
Seatpost - OneUp Dropper V3 150mm (SM), 180mm (MD), 210mm (LG-XL)
Saddle - Pivot Ride E-Bike
Wheels - DT Swiss HX1501 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29” | F - 15x110 / R - 12x157
Tyres - Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA

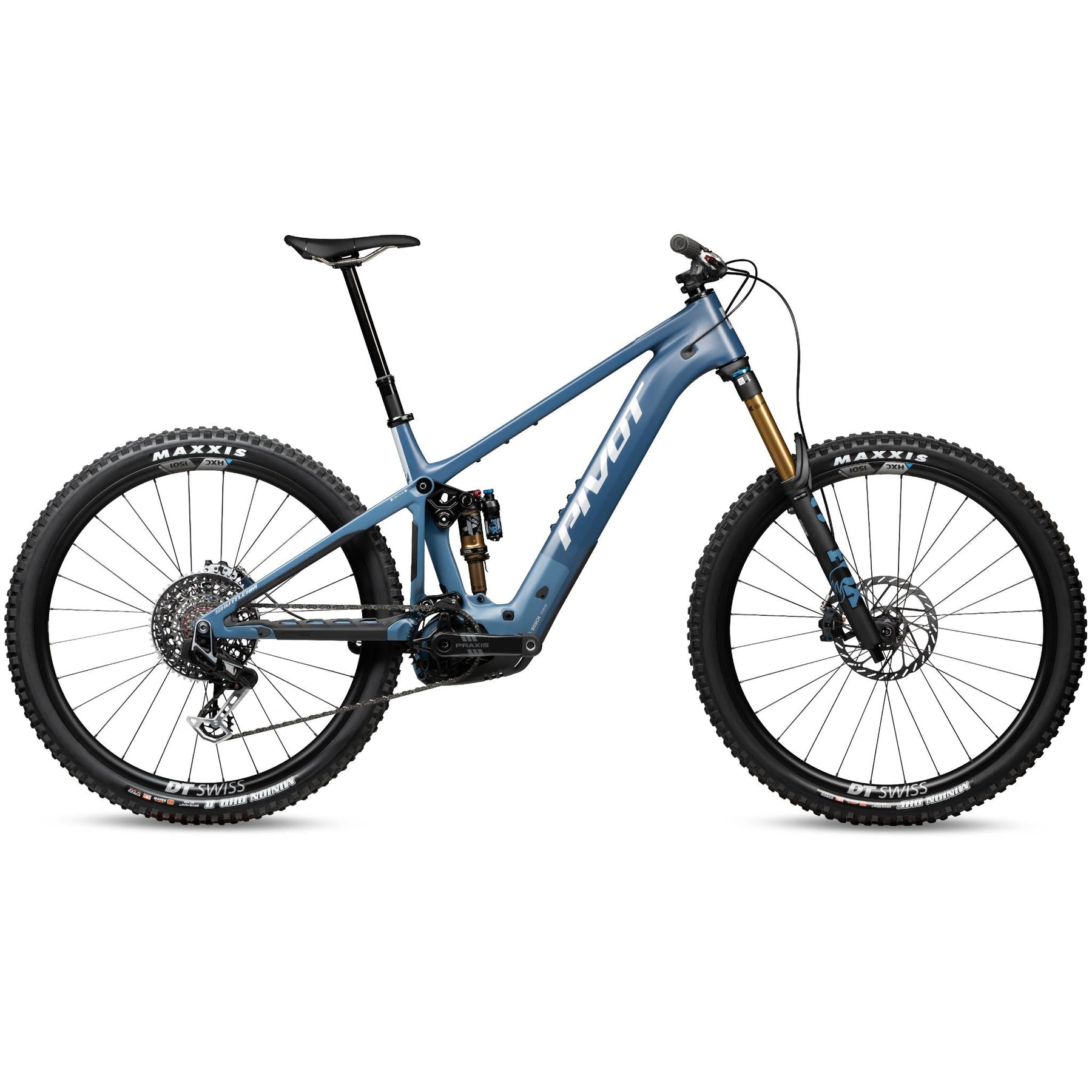

Specifications::Team Eagle XX

• Discipline: All-Mountain/Enduro

• Material: Carbon

• Front Travel: 160mm

• Rear Travel: 150mm

• Wheel Size: 29

• Warranty: Lifetime (frame)

Rear Shock - Fox Factory Float X
Fork - Fox Factory 36 29”, 44mm offset, GRIP - 160mm
Headset - Pivot Precision Sealed Cartridge
Rear Derailleur - Sram XX Eagle Transmission 12-Speed
Shifter - Sram AXS Pod Controller
Cassette - Sram XS-1270 Eagle Transmission 10-52t
Chain - Sram Eagle 70 Flattop 12-Speed
Crank Set - Sram XX 1297 Eagle Transmission 10-52t
Brakes - Sram Maven Ultimate 4-piston
Rotors - Sram HS2 Centerlock - 200mm
Drive unit - Bosch Gen 5 Performance CX-R
Battery - BOSCH Powertube 800wh
Handlebar - Phoenix Race Low Rise Carbon
Grips - Phoenix Factory Lock-On
Stem - Phoenix Team Enduro/Trail - 45mm
Seatpost - OneUp Dropper V3 150mm (SM), 180mm (MD), 210mm (LG-XL)
Saddle - Phoenix Ride E-Bike
Wheels - DT Swiss HXC1501 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29” | F - 15x110 / R - 12x157
Tyres - Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
