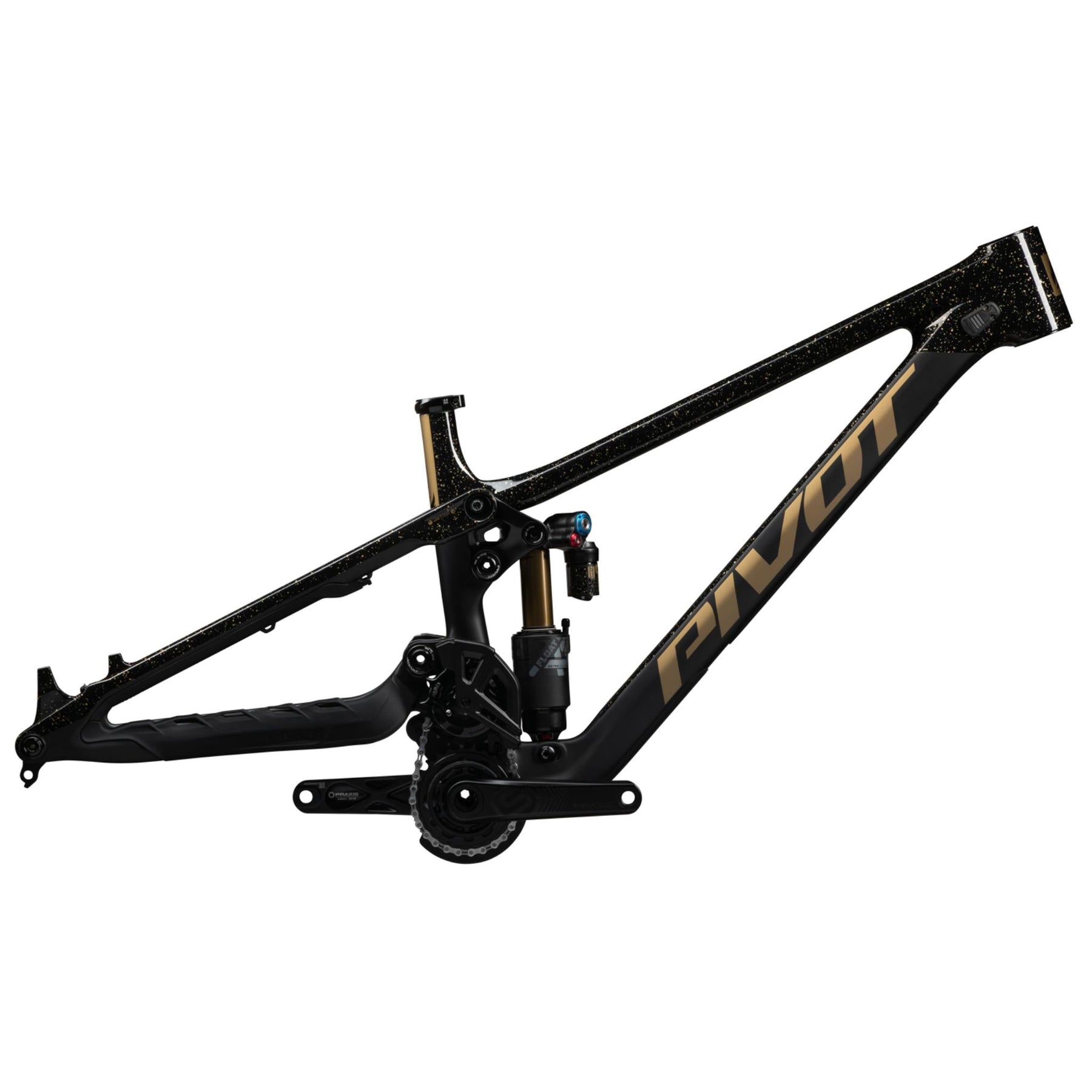

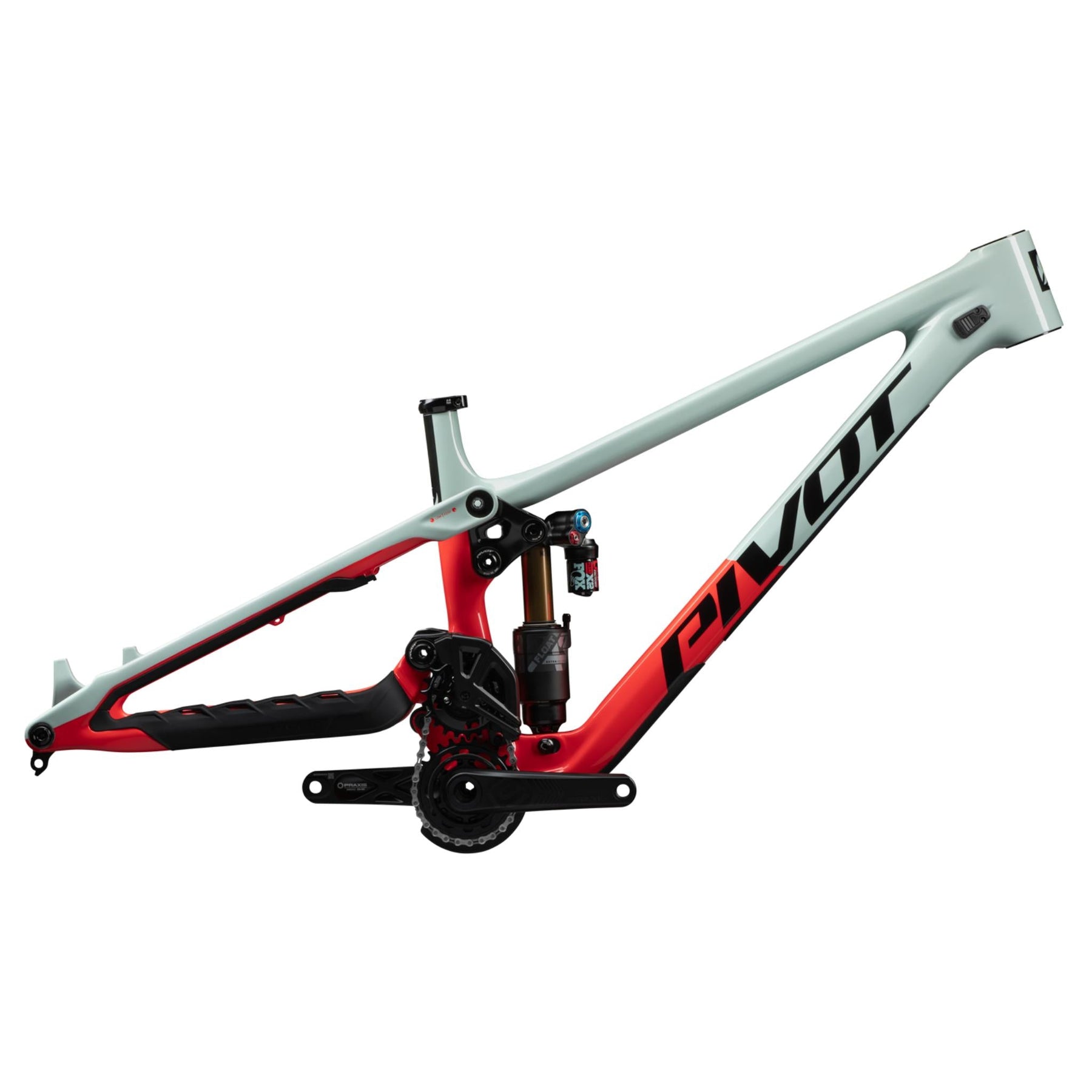

Pivot Phoenix Frame 2025
- Free worldwide shipping
- In stock, ready to ship
- Inventory on the way
The Pivot team took their time with the all-new Phoenix Downhill mountain bike. Undergoing extensive testing, tweaking and re-testing only to then be put through it's paces by Bernard Kerr to squeeze every last tenth of a second from the trail. Manufactured to Pivot's exemplary standards the Phoenix is your buddy for many furious trail runs, and lets be honest, have you ever seen a better looking bike?
Immediately catching the eye will be the mid-high pivot, six bar DW-Link suspension and the dual-chain, dual idler.
The DW-Link delivers outstanding performance from the Phoenix's available 210mm travel. Sublime levels of grip, control and stability with anti-squat engineered to maintain efficient power transfer and keep the suspensions performance predictable and reactive over challenging terrain.
The dual-chain drive keeps things running super-smooth, quiet and with virtually zero pedal kickback, this set-up is the equivalent to a 37t front chainring. This system is also very easy to maintain.
The Phoenix is adjustable to trail demands via a flip-chip and reach adjust headset. The flip-chip's 2 settings are 'high', based on Bernard Kerr's preferred set-up and is suited to rocky, technical courses, or 'low' for maximum speed and ultimate control. The +5mm/-5mm headset further allows for fine tuning the bike to your needs.
The Phoenix is available here as a frame only for your own custom builds. Contact us at support@biketart.com to discuss componentry or to arrange a full build
Key Features -
- Pivot Carbon frame, 210mm rear travel
- Front travel - 203mm (Pro), 200mm (Ride)
- Adjustable progression via flip-chip high and low settings
- MX mixed wheel sizing - 29" front/27.5" rear
- DW-Link mid-high 6-bar suspension
- Dual-Idler, Dual-Chain drive
- 2 build kits - Pro Saint and Ride GX
- Looks WAY nicer than your mates bike.
SIZING -
- S (S1): 5'4 - 5'9
- M (S2): 5'7 - 5'11
- L (S3): 5'10 - 6'3
- XL (S4): 6'1+
Specifications::Phoenix Frame
-
Discipline: Downhill
-
Material: Carbon
-
Front Travel: 200-203mm
-
Rear Travel: 210mm
-
Wheel Size: MX
-
Warranty: Lifetime (frame)
Rear Shock - Fox Factory Float X2
Crankset - Praxis DH-9, 165mm
Includes - Idler pulley assembly and chain
